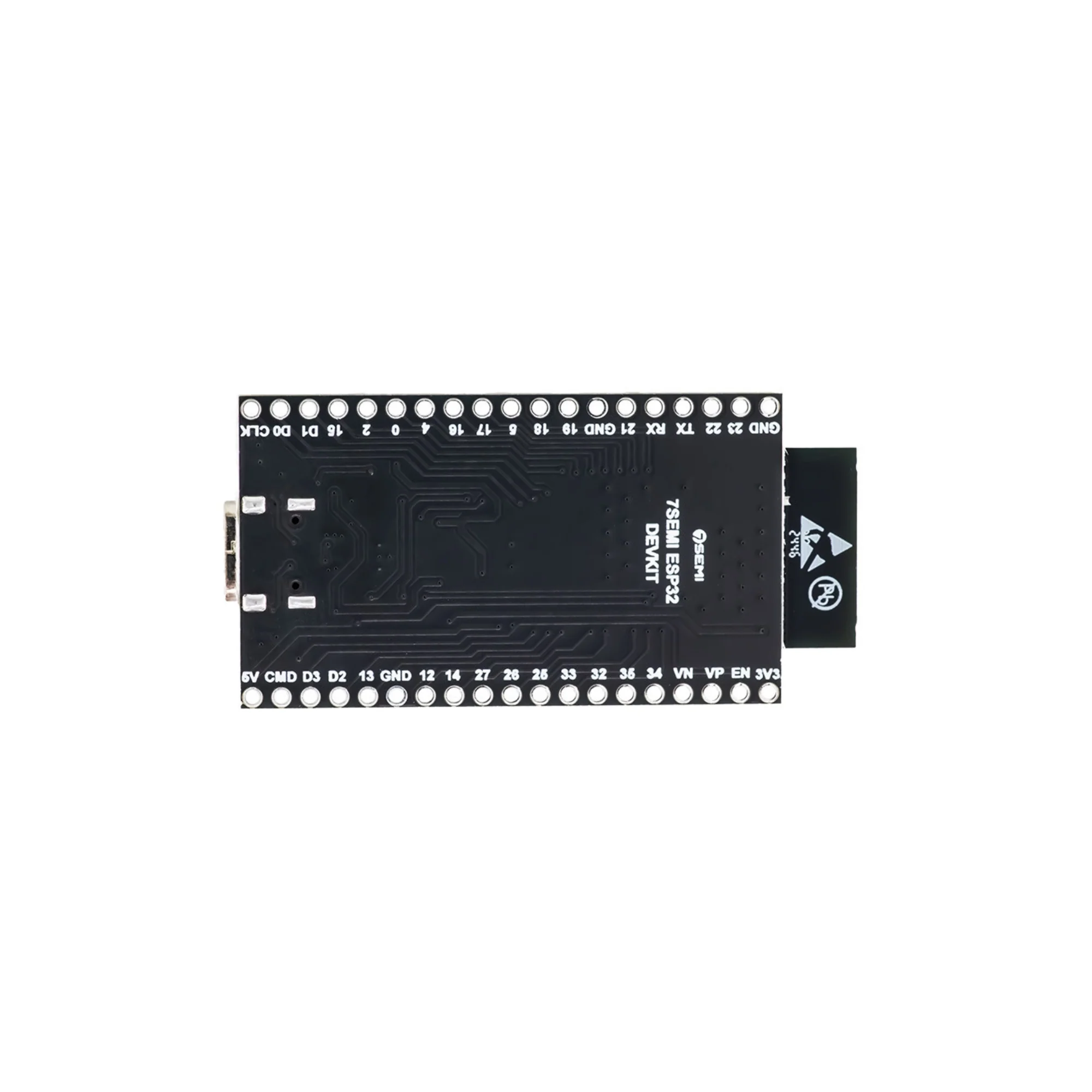

7Semi ESP32-DEVKIT-D ESP32 Wifi BLE Development Board

The 7Semi ESP32-DEVKIT-D is a versatile Wi-Fi and Bluetooth (BLE) enabled development board built around the powerful Espressif ESP32 SoC. Featuring a dual-core 32-bit processor, integrated Wi-Fi (802.11 b/g/n), and Bluetooth 4.2 (Classic + BLE), this board provides exceptional performance for IoT, automation, and embedded applications. The module includes multiple GPIOs, ADCs, DACs, UART, SPI, I²C, and PWM interfaces, making it suitable for a wide range of projects. With a built-in USB interface for programming and debugging, the ESP32-DEVKIT-D offers an easy-to-use platform for rapid prototyping and product development.

Technical Specifications:

• Microcontroller: Espressif ESP32-WROOM-32 module

• CPU: Dual-core 32-bit Xtensa LX6 @ up to 240 MHz

• Wireless Connectivity:
   – Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz)
   – Bluetooth: v4.2 BR/EDR and BLE

• Flash Memory: 4 MB (SPI flash)

• SRAM: 520 KB internal

• Operating Voltage: 3.3 V

• Input Voltage: 5 V via USB or VIN pin

• GPIO Pins: 30+ multifunctional I/O pins

• Communication Interfaces: UART, SPI, I²C, I²S, PWM, ADC, DAC, CAN

• ADC Channels: 12-bit (up to 18 channels)

• DAC Channels: 2 (8-bit resolution)

• USB Interface: Micro USB for programming and power

• Logic Level Compatibility: 3.3 V

• Power Consumption:
   – Deep Sleep: <10 µA
   – Active Mode: ~80–240 mA (depending on usage)

• Antenna: Onboard PCB antenna

• Operating Temperature: -40°C to +85°C

• PCB Type: High-quality FR-4 with 2.54 mm pin headers

Features:

• Dual-core ESP32 processor with integrated Wi-Fi and Bluetooth 4.2

• High-performance and low-power design for IoT and embedded systems

• Onboard USB-to-UART converter for easy programming and debugging

• Rich set of peripheral interfaces (GPIO, ADC, DAC, SPI, I²C, UART, etc.)

• Supports multiple power modes for battery-powered applications

• Wide voltage input range via USB or external power source

• Compatible with Arduino IDE, ESP-IDF, MicroPython, and PlatformIO

• Built-in PCB antenna for stable wireless connectivity

• Compact and robust design suitable for prototype and production use

• Ideal for rapid IoT and smart device development

Applications:

• IoT and cloud-connected devices

• Smart home automation and building control systems

• Wireless data acquisition and sensor networks

• Industrial and environmental monitoring systems

• Robotics and automation projects

• BLE-enabled portable devices and wearables

• Remote control and wireless communication systems

• Edge computing and AI-based IoT devices

• Educational and research projects in embedded systems

• Wi-Fi/Bluetooth-based product prototyping and testing
