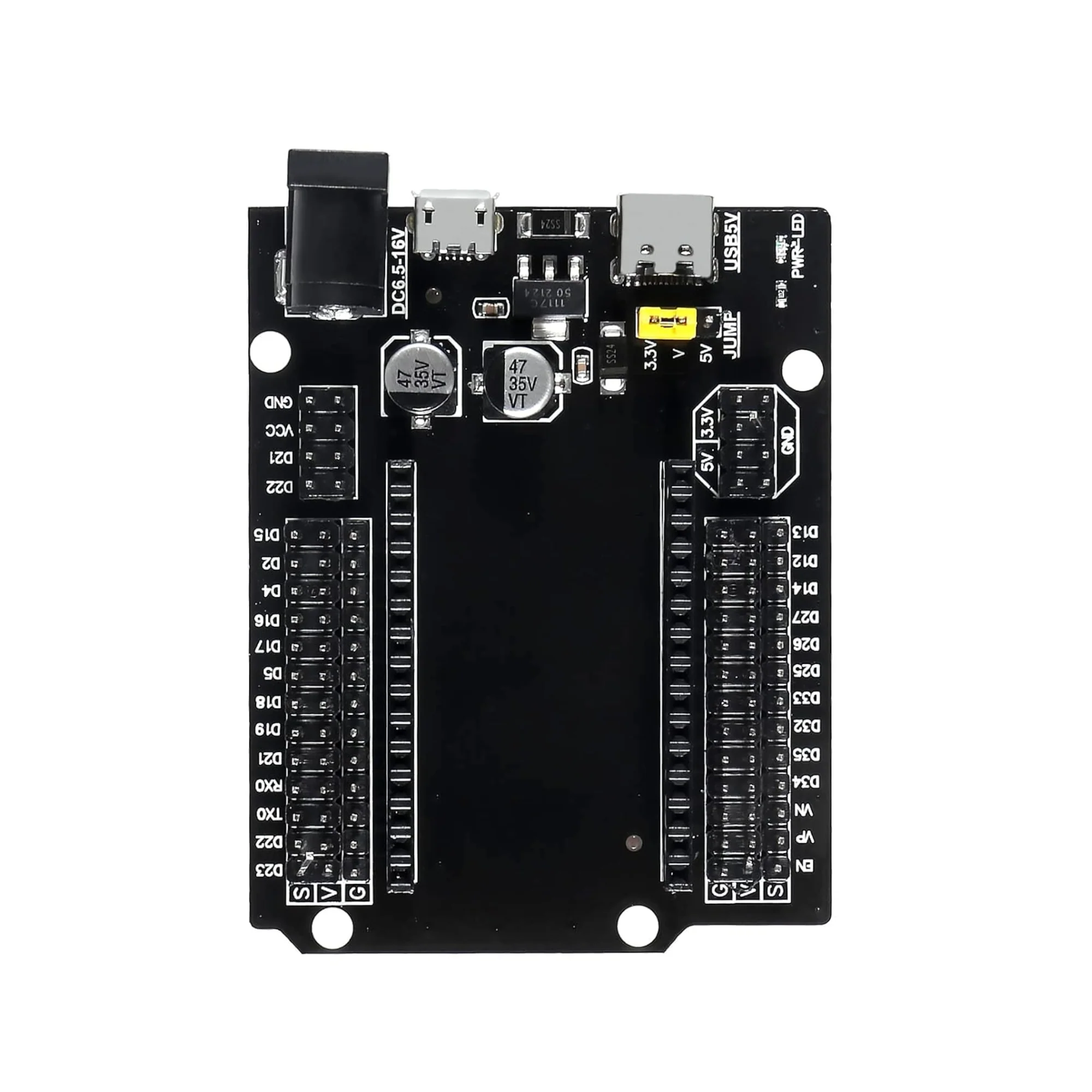

ESP32 30P Development Expansion board

The ESP32 30P Base Board is a versatile expansion and development base designed specifically for 30-pin ESP32 development modules. It simplifies prototyping by providing clearly labeled GPIO headers, multiple power input options, and onboard voltage regulation. This base board allows easy access to all ESP32 pins while offering stable power distribution for connected peripherals and sensors.

Technical Specifications:

• Compatible with: ESP32 30-pin development boards

• Input power options: DC jack, Micro-USB, Type-C USB

• Input voltage range: 5V – 16V DC

• Onboard voltage outputs: 5V and 3.3V selectable

• Voltage regulation: Onboard linear / switching regulator

• GPIO access: All ESP32 pins broken out on headers

• Jumper selection: 3.3V / 5V output selection

• PCB mounting holes: Yes

• Board material: FR-4 PCB

Features:

• Dedicated base board for ESP32 30-pin modules

• Multiple power input methods for flexibility

• Stable 3.3V and 5V power supply for peripherals

• Clearly labeled GPIO pins for easy wiring

• Plug-and-play design for rapid prototyping

• Supports sensors, displays, relays, and modules directly

• Robust layout suitable for development and testing

Applications:

• ESP32 IoT development projects

• Home automation prototypes

• Sensor data acquisition systems

• Robotics and control systems

• Wireless communication projects

• Educational and training kits

• Rapid prototyping and testing environments
